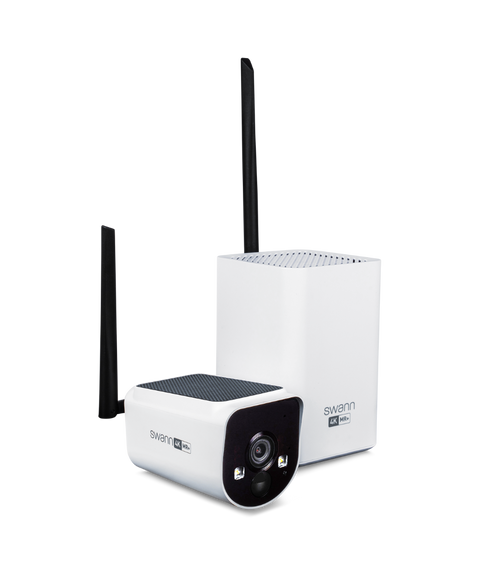

MaxRanger4K™ Longer, Stronger Wireless Security System - 4 Pack
Swann’s MaxRanger4K Strong, Long-Long Range Wireless Security System offers stronger wireless and maximum security, with 4K cameras mountable up to 250m (open air) and 100m (typical use) from the Hub. The cameras can transmit through walls, ceilings, floors, trees, brick, cement and other obstacles with a reliable signal that other Wi-Fi systems can’t match. Both feature built-in solar panels, sensor lights, sirens, two-way talk, colour night vision, and True Detect+ for heat, motion, people, and vehicle alerts. Footage is stored on the Hub’s 64GB memory for up to 12 months and there’s never monthly fees. Control everything via the Swann Security app. Ideal for any home or business where regular Wi-Fi is a challenge, it delivers powerful, reliable wireless security. It’s security you can trust from Swann.
Swann Model: SWNVK-MR4KSD4-EU
See & record what's happening up to 250m (depending on local conditions) with long-range Wi-Fi HaLow™ technology
True Detect+ senses heat, motion, people & vehicles to trigger recording, alerts, spotlights & sirens
Strongest & More Reliable Wireless
Sony STARVIS™ 4K Sensors
Built-In Solar Panels
Up to 6 months* of rolling recordings can be saved on the 64GB MicroSD
Protect your Perimeter:
Stronger & More Reliable Signal:
See More Day & Night:
Actively Prevent Crime:
Easiest Ever Setup:
Free Recording & No Downtime:
Swann Security App
Stay Connected & ProtectedManage Swann DVRs, NVRs, and Wi-Fi cameras all from one app. Live view, playback, and control made easy, no juggling between platforms.
Stay connected on the goWatch live feeds or review footage remotely using Wi-Fi. Peace of mind whether you're at work or away on holiday.
Smart Alerts That MatterReceive push alerts for motion, people, vehicles, and more. Set custom modes like Home or Away for smarter security. *Rich notifications may require a subscription.
Flexible video storageStore footage locally with a DVR/NVR or microSD, no ongoing cloud fees required. Keep full control without extra costs.
Technical Info
MaxRanger4K™ Power Hub Specifications
| Video | |
|---|---|
| Video | |
| Video Input | Up to 8 Wireless Cameras |
| Video Output | HDMI |
| Display Resolution | Up to 4K |
| Recording | |
| Recording | |
| USB Ports | 2 |
| Storage | Includes 64GB MicroSD Card (supports up to 512GB) |
| Hard Drive Support | Supports up to 5TB Additional Storage via USB |
| Software | |
| Software | |
| Smartphone App | |
| Handheld Device Supported | iOS |
| General | |
| General | |
| Dimensions | 3.94\ x 3.94\ x 6.1\ / 100mm x100mm x 155mm |
| Wireless Type | Wi-Fi HaLow |
| Wireless Range | Up to 250m (in the open air) and 100m (for typical use)* |
| Emergency Power Backup | Yes. Up to 5 hours emergency power supply when battery is inserted in Power Hub |
| Requirements | |
| Requirements | |
| Mobile Device or Tablet using iOS/iPadOS (13.0 & later) or Android (10.0 and later) | |
| High Speed Internet Connection with Minimum Internet Upload Speed of 4Mbps | |
| * Based on 500 seconds of video recording per camera per day. | |
| # Based on sensor light being on & adequate ambient light including street lights | |
| ^ Low Wi-Fi signal strength & local conditions may cause lower resolution video recording. | |
MaxRanger4K™ NVW-MR4KCAM Camera Specifications
| Video | |
|---|---|
| Video | |
| Video Quality | 4K Ultra HD^ |
| Viewing Angle | |
| Audio | |
| Audio | |
| Microphone | Yes |
| Audio Range | Up to 16ft/5m |
| Speaker | Yes |
| Siren | Yes |
| Night Vision | |
| Night Vision | |
| Night Vision Distance | Up to 130ft/40m (black and white) |
| Up to 100ft/30m# (Color | |
| Color Night Vision | Yes |
| Power | |
| Power | |
| Power Source | Rechargeable 12 |
| Solar Charging | Yes. Integrated Solar Panel on Camera |
| Battery Recharging | Via USB-C Cable (included) |
| General | |
| General | |
| True Detect+™ Sensing | Heat |
| True Detect+™ Range | Up to 30ft/9m |
| Indoor/Outdoor | Indoor & Outdoor (weatherproof IP66 rated) |
| Sensor Lights | Yes |
| Operating Temperature | -22°F to 140°F / -30°C to 60°C |
| Dimensions | 2.76\ x 5.68\ x 3.07\ /70mm x 144mm x 78mm |
| Requirements | |
| Requirements | |
| Mobile Device or Tablet using iOS/iPadOS (13.0 & later) or Android (10.0 & later) | |
| High Speed Internet Connection with Minimum Internet Upload Speed of 4Mbps | |
| This Camera must be connected to a MaxRanger4K Hub. | |
Product Downloads
- Swann Security iOS App Manual – English - PDF
- Swann Security Android App Manual – English - PDF
- NVW-MR4K Camera - Instruction Manual - PDF
- NVW-MR4K - Express Quick Start Guide (In-app Setup) - PDF
- NVW-MR4K - Wizard Quick Start Guide - PDF
- NVW-MR4K - Hardware Quick Start Guide - PDF
- NVW-MR4K - Instruction Manual - PDF
- SOACC-MRANTENNA - Installation Example - PDF
Whats Included with MaxRanger4K™ Longer, Stronger Wireless Security System - 4 Pack
See whats included in the box
With over 35 years of global security expertise, Swann is a trusted leader in DIY and professional surveillance. Our products are backed by industry-leading innovation, secure cloud and local storage, and dedicated customer support – giving you peace of mind, 24/7.
